AutoCAD Zoom Extents Shows a Tiny Drawing? Find Stray Objects and Distant Geometry

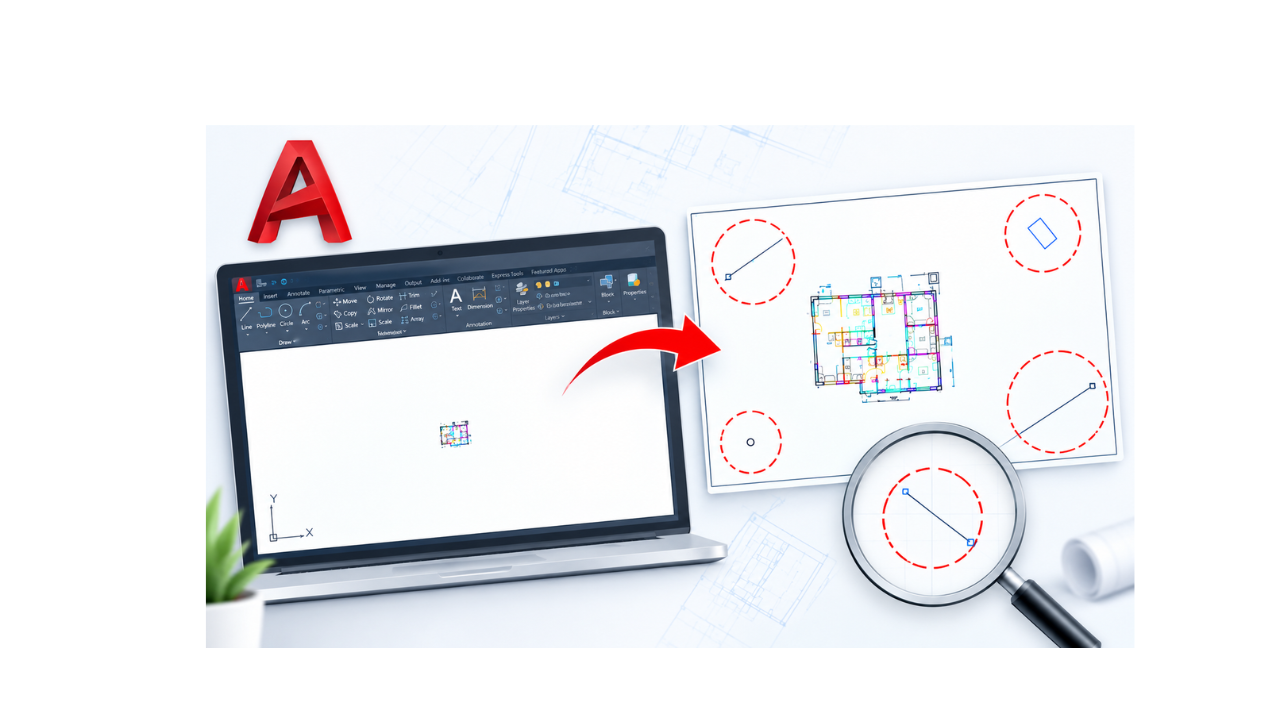

Have you ever typed Z → E in AutoCAD to zoom to your drawing, only to see your entire design shrink into a tiny object in the middle of the screen? This is a common and frustrating problem, especially when working with large architectural plans, mechanical drawings, or complex 2D layouts.

In many cases, the main drawing is perfectly fine. The problem is that AutoCAD is including stray objects, distant geometry, or unwanted elements located far away from your actual design when calculating the drawing extents.

The good news is that you can usually fix this issue without recreating your drawing. In this guide, you'll learn why AutoCAD Zoom Extents makes your drawing appear tiny, how to locate unwanted geometry, and how to restore the correct zoom level step by step.

What Is the AutoCAD Zoom Extents Problem?

The Zoom Extents command adjusts the view to include all objects within the drawing's extents. If an unwanted point, line, block, or other object exists far away from your main design, AutoCAD may zoom out to include that object.

For example, imagine a mechanical component measuring 200 mm across. If another object exists thousands of units away, Zoom Extents must account for both locations. As a result, your actual component may appear extremely small on the screen. This problem can occur in both 2D drafting and 3D modeling workflows.

Why Does Zoom Extents Make Your Drawing Tiny?

Before fixing the issue, understand the most common causes:

1. Stray Objects Far Away From the Drawing: An accidental click, incorrect coordinate entry, or unintended copy operation can leave a line, circle, or point far away from your main drawing.
2. Accidental Geometry at Incorrect Coordinates: An object may have been created using an incorrect coordinate, such as entering a value with extra zeros.
3. Blocks or Inserted Objects With Unexpected Extents: An inserted block may contain geometry located far away from its insertion point.
4. Imported CAD Geometry: Drawings imported from other CAD programs, PDF conversions, or external DWG files may contain distant objects.
5. Unwanted Objects on Hidden or Frozen Layers: Objects on hidden or frozen layers may still complicate drawing extents.

How to Fix AutoCAD Zoom Extents Showing a Tiny Drawing

Follow these steps in order. Save a backup of your DWG file before deleting geometry or modifying blocks.

Method 1: Use Zoom Extents to Inspect the Drawing

1. Open your drawing in AutoCAD.
2. Type Z in the command line and press Enter.
3. Type E and press Enter to execute Zoom Extents.
4. Observe the full drawing area and look for isolated objects far away.

Method 2: Return to the Main Drawing

1. Use the mouse wheel to zoom in toward the main design if visible.
2. Use Zoom Window (Z → W) to create a view around the intended drawing area as a temporary solution.

Method 3: Locate Stray Objects Using Selection and Properties

1. Type QSELECT and press Enter.
2. Choose an object type, such as Line, Circle, or Point, and apply suitable filters.
3. Identify objects that are clearly outside the intended drawing area.

Method 4: Inspect Drawing Coordinates and Object Properties

1. Select the suspicious object and press Ctrl + 1 to open the Properties palette.
2. Review its position coordinates and compare them with your expected drawing area.
3. Delete or move the object to the correct location if confirmed to be accidental.

Method 5: Check Blocks for Distant Internal Geometry

1. Select a suspicious block and open its definition using BEDIT.
2. Look for accidental lines or points far from the intended block contents and correct them.

Method 6: Check Layers and External References

1. Open the Layer Properties Manager by typing LA to review hidden or frozen layers.
2. Open the External References palette using XREF to check attached DWG files.

Method 7: Clean Up the Drawing Carefully

Remove only the geometry confirmed to be unnecessary, save your corrected DWG file, and test Zoom Extents again. Avoid using PURGE as a general tool for deleting stray drawing geometry since it only removes unused named items.

How to Prevent the Zoom Extents Problem in the Future

• Check coordinates before placing geometry.
• Inspect imported files and external references.
• Review blocks before reusing them.
• Keep reference geometry organized on appropriate layers.
• Save backup versions before performing major cleanup.
